Photovoltaic DC-DC converters have many important uses in solar power systems, with their main applications including voltage regulation in fluctuating conditions. They enhance energy conversion efficiency and facilitate effective energy transfer. These converters address issues such as ripple from switching, ensuring system stability. They also provide protection against excessive load, short circuits, and overheating, keeping the system safe and functioning optimally.
Photovoltaic DC-DC converters control voltage. They help keep power steady from solar panels even when sunlight changes.
Maximum Power Point Tracking (MPPT) algorithms help get more energy from solar panels. This makes the system work better.
Picking the right DC-DC converter is very important for how well the system works. It can change how long the battery lasts, how good the power is, and how much the system costs.
Photovoltaic DC-DC converters are very important in solar power systems. They control how electricity moves between solar panels, batteries, and the grid. These converters change voltage levels to fit what different devices need. Their design helps solar panels work well, even if sunlight changes or some panels are shaded.
Engineers use different DC-DC converters in photovoltaic systems. Each type has its own job:
Buck Converter (step-down): It lowers voltage from the solar panel for batteries or devices.
Boost Converter (step-up): It raises voltage for the grid or other equipment.
Buck-Boost Converter: It can raise or lower voltage, so it works in many situations.
Other types like Cúk and SEPIC converters are also common. These designs help move energy better and support solar power systems.
Converter Type | Function | Typical Use Case |
|---|---|---|
Buck | Step-down | Battery charging |
Boost | Step-up | Grid integration |
Buck-Boost | Step-up/down | Variable loads |
Voltage Stability and Matching: The output voltage of PV strings has a wide range (e.g., 150-850V) and varies with sunlight. DC-DC converters stably boost this voltage to a higher, stable DC bus voltage (e.g., 600V, 800V, or even 1500V). This voltage is more convenient for long-distance transmission and perfectly matches the voltage of the energy storage battery (e.g., 400V) or the DC input range of the inverter.
Maximizing Energy Capture: The load and energy storage status in a microgrid constantly fluctuate, causing DC bus voltage fluctuations. Without a DC-DC converter, the operating point of the PV array would drift, moving away from its maximum power point. The MPPT function can ignore back-end fluctuations and independently ensure that the PV array always generates power at maximum efficiency, significantly improving the microgrid's energy self-sufficiency.
Flexible Access and Scheduling: By controlling the output power of the DC-DC converter, the microgrid energy management system (EMS) can flexibly dispatch PV power. For example, when the energy storage is full and the load is low, the EMS can instruct the DC-DC converter to reduce power, avoiding energy waste or system disruption.
Support for island operation: In island mode, photovoltaic power is a key power source. The stable output of the DC-DC converter is key to maintaining the DC bus voltage stability within the microgrid, powering other DC loads or providing a stable DC source for the inverter, thereby ensuring stable AC voltage and frequency.
Direct and efficient coupling: DC fast charging stations require high-power, high-voltage DC power (e.g., 200-1000V). PV DC-DC converters boost the DC power generated by photovoltaics to an appropriate voltage level, which can then be directly or with minimal conversion integrated into the DC bus for use by the charging station. This DC-DC path avoids the energy losses associated with multiple conversions in traditional DC-AC-DC (typically improving efficiency by over 3-5%), significantly improving overall system efficiency and charging economy.
Smooth output and peak-shaving: PV power generation is intermittent. DC-DC converters work in conjunction with energy storage systems. During periods of strong sunlight, photovoltaics not only provide power but also charge the energy storage battery at optimal efficiency through the DC-DC converter. When the vehicle is charging or sunlight is low, the energy storage battery discharges. The DC-DC converter ensures efficient and smooth integration of photovoltaic energy into the system.
Capacity expansion and cost reduction: The voltage boost provided by the DC-DC converter enables the use of lower current, higher voltage system designs. According to the equation P=V1, for a given power, higher voltage results in lower current. Low current means thinner cables, less line loss, and cheaper circuit breakers and other electrical equipment, reducing system cost and installation complexity.

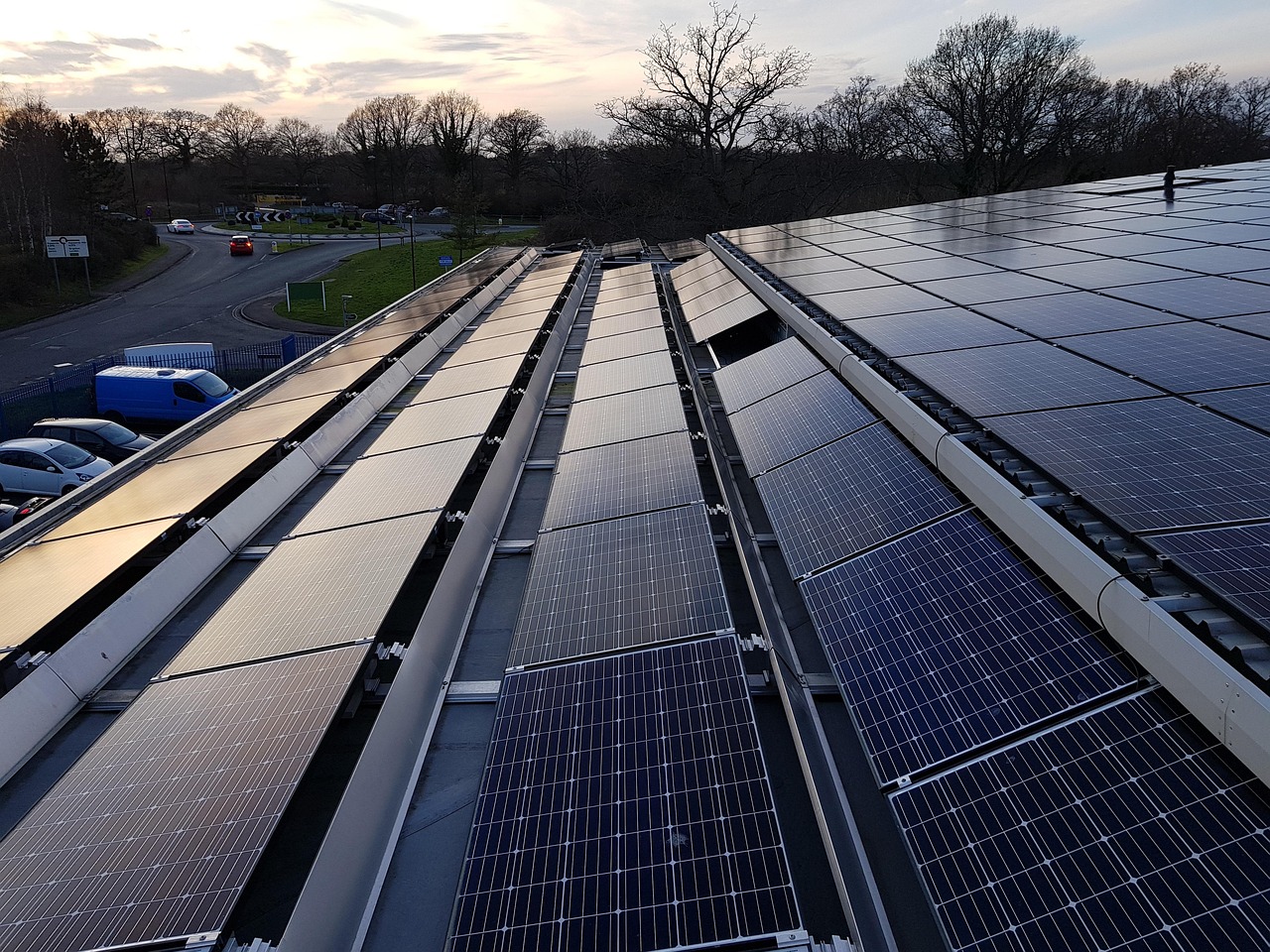

Solving the mismatch problem: In complex rooftop environments, some panels may be obscured by shadows, dust, or bird droppings, resulting in a significant drop in overall string power (the "barrel effect"). A DC-DC optimizer using string-type MPPT or module-level MPPT allows each panel or string to operate independently at its maximum power point, significantly reducing power losses caused by shadowing (potentially increasing power generation by 5%-25%).
Design flexibility: DC-DC converters allow PV strings to be installed in various orientations and angles, unifying the output voltage of strings of varying power generation capabilities onto a single DC bus for transmission to the inverter. This breaks the constraints of traditional string-connected designs requiring uniformity and maximizes the use of available roof space.
Safety and maintenance: Many modern DC-DC converters (such as optimizers) feature a fast shutdown function. In emergencies or when maintenance is required, the string voltage can be remotely or automatically reduced to a safe level (e.g., below 1V), ensuring the safety of firefighters and maintenance personnel and complying with relevant safety regulations.
Picking the right DC-DC converter depends on many things. Engineers think about battery life, power quality, cost, and how loads change the system. The table below lists important things to look at:
Criteria | Description |
|---|---|
Battery and DC link capacitors lifetimes | Checks how long parts last in different setups. |
Impact of non-linear load on neutral current | Looks at how loads change the current in the neutral wire. |
Power quality | Measures if the power is steady and reliable. |
Cost of the photovoltaic system topology | Looks at how much different system designs cost. |
Voltage and current total harmonic distortion | Checks if the electrical signals are clean and good quality. |
The input and output support an ultra-wide operating voltage range of 0~1000V.
Nine operating modes are available to meet diverse application requirements, including hydrogen production, DC-coupled photovoltaic storage and charging, cluster-level conversion, and large-capacity DC fast charging stations.
Adaptive input and output voltages eliminate the need for buck-boost matching. The interleaved parallel topology reduces ripple by 40%.
Current sampling accuracy reaches 0.4%, and MPPT tracking accuracy reaches 99.99%. The optimized and upgraded photovoltaic storage PVBATTERY operating mode is also available.
BMS protection directly connects to the module, providing enhanced battery protection. The fastest photovoltaic power limit charging protection reaches 3ms, ensuring safe battery charging.

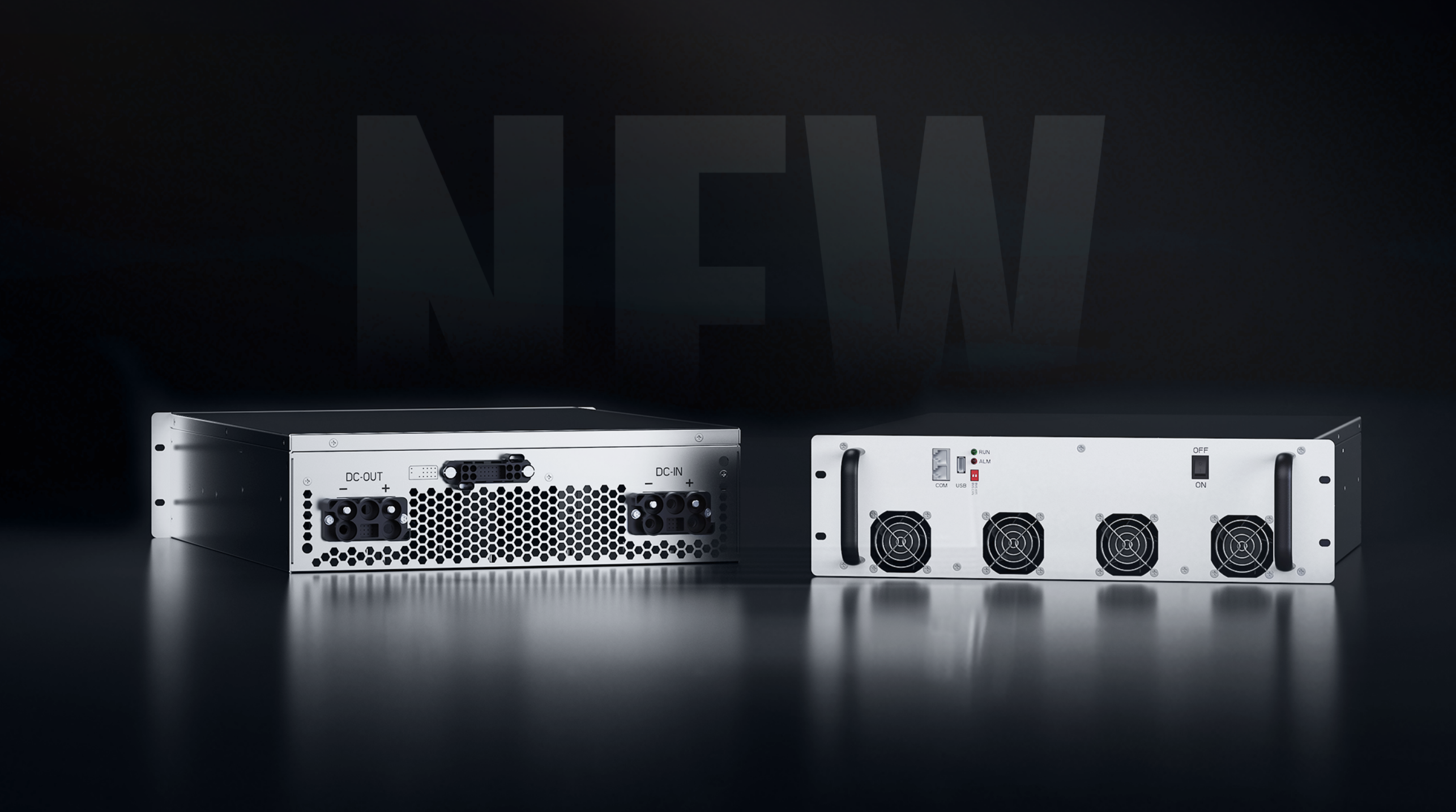

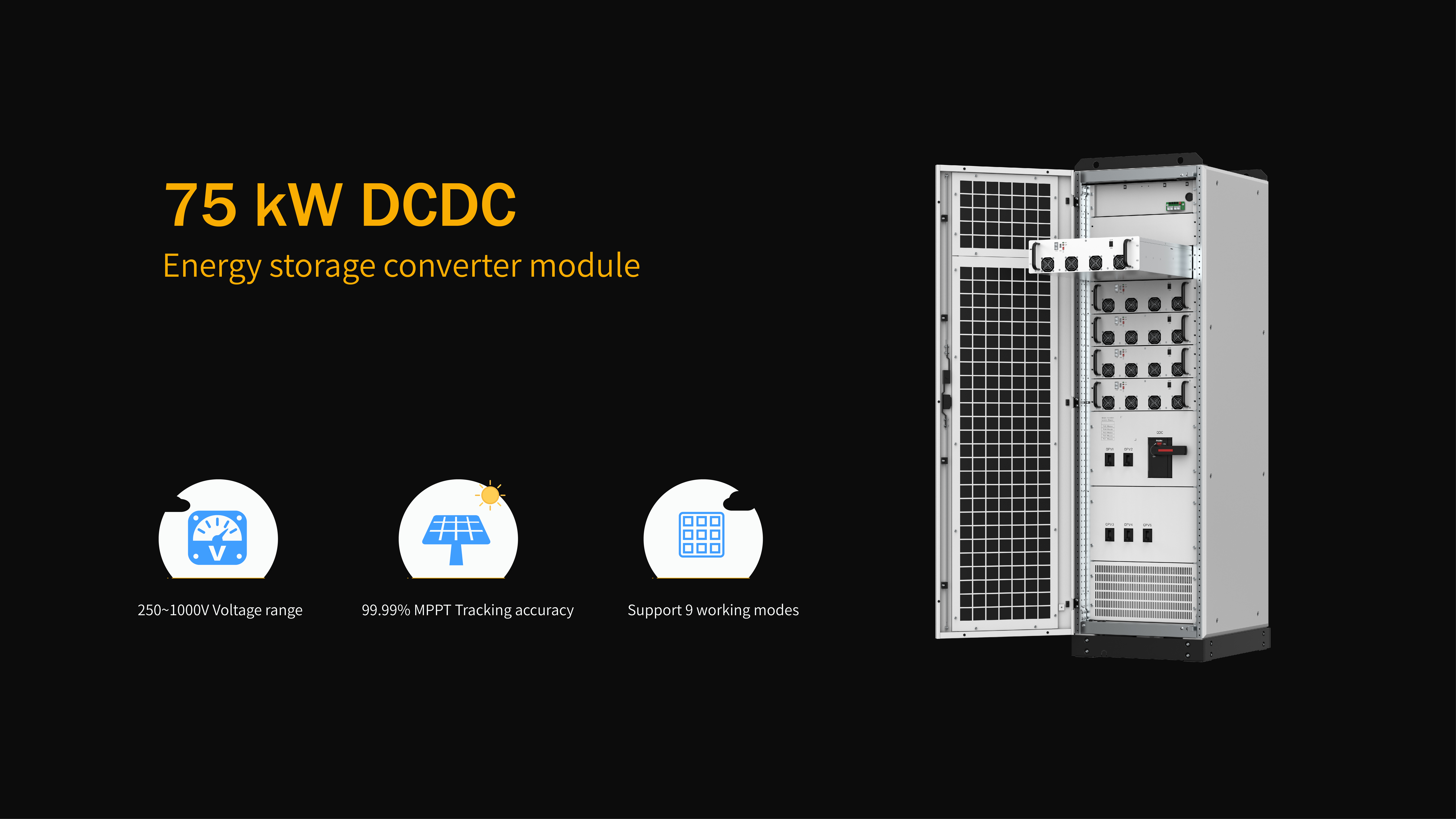

If you want to know more details about Megarevo 75kW DCDC, you can click to visit "www.megarevo.com" to learn more
