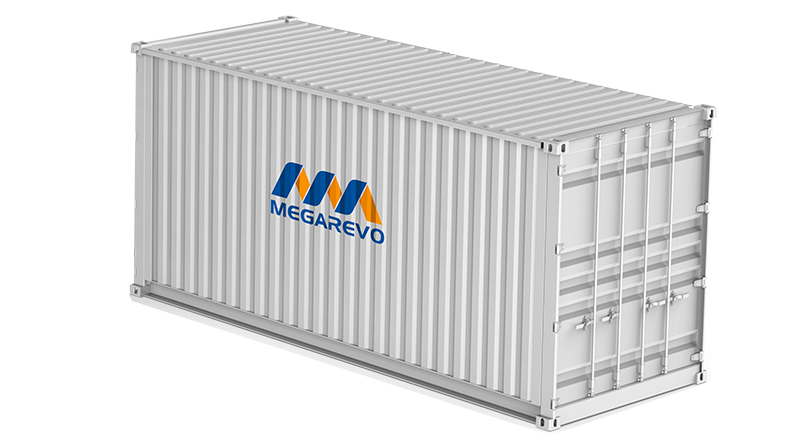

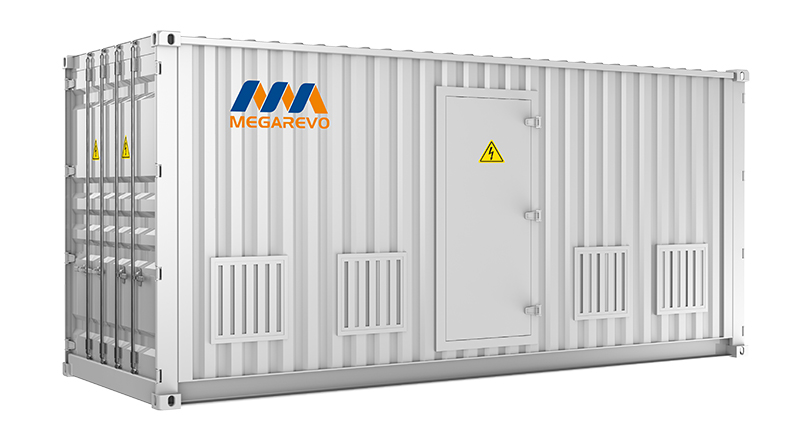

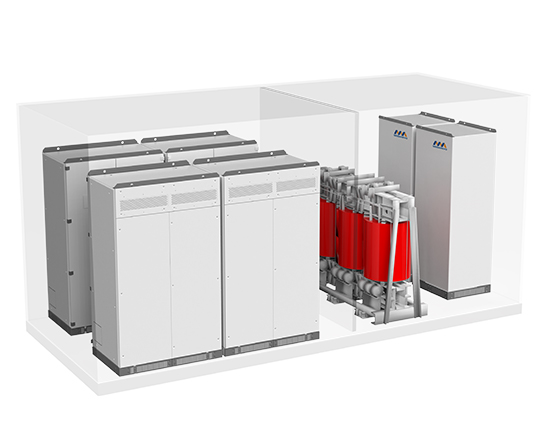

Megarevo's container type energy storage booster is the core component of peak and frequency regulation of large-scale energy storage power stations.
It supports multiple sets of battery input and comprehensively improves battery cycle life. In addition, the system integrates various booster systems, and support turnkey service.
Pre-assembled design for easy installation and transportation
Strong Extensibility
AC and DC dual power backup
Meet industry-leading safety standards
Support 7*24 remote service
Technical specification | ESSC1000A-MV35 | ESSC1260A-MV35 | ESSC2000A-MV35 | ESSC2500A-MV35 |
DC(battery) | ||||
Battery voltage range(V) | 500~900 | |||
AC(on-grid) | ||||
Max. apparent power (kVA) | 1100 | 1386 | 2200 | 2750 |
Rate output power(kW) | 1000 | 1260 | 2000 | 2500 |
Rated voltage(kV) | 35(10kV optional) | |||
Voltage range(kV) | 38.5±2×2.5%(6、10、22)optional | |||
Rated current(A) | 16.5 | 20.8 | 33 | 41.2 |
Max. output current (A) | 18.1 | 22.9 | 36.3 | 45.4 |
Rated frequency(Hz) | 50 /60 | |||
Frequency range (Hz) | 45-55/55-65 | |||
THDi | <3% | |||
Power factor | 1lagging-1leading(Settable) | |||
AC connection | 3W+PE | |||
General data | ||||
Max.efficiency | 98% | |||
Ingress protection | IP54 | |||
Noise emission(dB) | <75 | |||
Operating temperature (℃) | -30~55 | |||
Cooling | Temperature controlled forced air cooling | |||
Relative humidity | 0 ~95% non-condensing | |||
Operating altitude | 5,000m(>3,000 Derating) | |||
Dimension W*D*H (mm) | 4300*2438*2591 | 4300*2438*2591 | 6058*2438*2591 | 6058*2438*2591 |
Weight(kg) | 4500 | 4500 | 8000 | 8000 |
Isolation Transformer of PCS | No | |||
Booster transformer | Integrated | |||
Display | LCD touch-screen | |||
BMS communication | RS485/CAN | |||
EMS communication | RS485, TCP/IP |
